Machinery repair shops low price panel led lcd tv cof acf splicing machine for cable cable repair

1 Set
MOQ
Machinery repair shops low price panel led lcd tv cof acf splicing machine for cable cable repair
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: PLC
Warranty: 1 Year, One Year
Applicable Industries: Machinery Repair Shops, TV Screen Panel Repair Shop
Showroom Location: Turkey, United States, Viet Nam, Philippines, Indonesia, Pakistan, Argentina, Colombia, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Malaysia
Product Name: Bonding Machine
Used For: TV Laptop Panel Repair
Usage: TV Computer Laptop Repair
Function: Ic Fpc Tab Cof Cog Fog Cob Bonding
Type: Pulse Heat Hot Press Bonding
Suitable For Use: 100 Inch Lcd Led Screen
Weight: 430KG
Machine Body Size: 1240*840*1680mm
Certification: CE Certification
After-sales Service Provided: Free Spare Parts, Video Technical Support, Online Support
After Warranty Service: Video Technical Support, Online Support, Spare Parts
Local Service Location: Turkey, United States, Viet Nam, Philippines, Indonesia, Pakistan, Russia, Thailand, Malaysia, Argentina, Colombia, Bangladesh, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan
Basic Infomation
Certification: CE certification
Payment & Shipping Terms
Packaging Details: Export Wooden Box Packing
Product Description
Customer Review
Product Description

Low price led lcd tv cof bonding machine for flex cable repair


lcd bonding machine, led bonding machine, acf bonding machine, cof bonding machine.

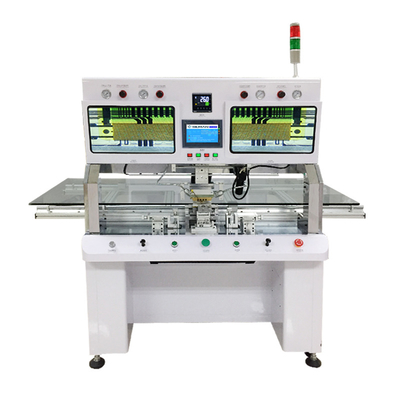

ST-100SW is our large single head bonding machine for cof pcb led lcd TV screen glass panel.

(1) acf tab cof ic bonding machine

ST-100SW is our large bonding machine for bonding acf cof tab tape through a hot press pulse heating head during the process of
repair lcd screen. It is widely used for led lcd tv screen panel repair and can solve screen display faults caused by COF damage.

There are 3 CCD cameras and pulse heating hot press bonding head in size 50*1.4mm. We also can provide bonding machine head in
other sizes
like 68*1.4mm and 50*1.2mm.

*bonding machine working process
1. ACF PCB bonding
2. ACF COF Bonding
3. Screen panel ACF COF TAB Tape Bonding

(2) ST-100SW TV screen panel repair machine for bonding acf cof tab fpc cog fog

ST-100SW can repair TV screen up to 100inches with an extensible glass platform. It also can repair 4K 8K TV lcd screen panel.

This model ST-100SW is in large size and easy for operation. It is a bonding machine with low price but good performance. It is
our hot sell bonding machine.

Feel free to contact us for the lastest bonding machine prices.

(3) Bonding machine Spare parts

Spare parts are provided for repairing bonding machine in warranty. The Warranty for all our TV bonding machines is one year.

(4) automatic single head hot press pulse heating machine

(5) bonding machine accessories

The bonding machine price includes the cost of accessories. You only need to buy COF then you can operate the bonding machine and
start your TV repair.

* image show how the bonding machine works

* Images of our bonding machine ST-100SW from front/right/left/back.

* Accessory list
Specification
Product Name
Lcd bonding machine
Model #
ST-100SW
Applicable LCD size
Max 100 inches
Applicable LCD panel thickness
0.3-1.1mm
Heating mode
Pulse Heat
Working precision
±0.015mm
Machine size
1240*840*1680mm
Weight
430KG
Input Power
3500W
Rated Power(W)
AC 220V
Work pressure
0.1~0.7Mpa Dry air source
Operation mode
7 inch touch screen control
Alignment system
2 High definition C/LCCD camera
Temperature error range
±0.5°C
Programming control device
Panasonic PLC
TAB fixture
micrometer X, Y, Z Axis adjust
Platform moving
Manual Operation
Hot press head size
50*1.4*10mm
Warranty
One year
Application Examples
Recommend Products
Details Images

tab bonding machine

The components used in ST-100SW are from all famous brands all over the world with good performance.

1) 3 pcs High definition Cameras
2) SUS440C titanium alloy press head
3) Tab adjustable fixture
4)Vacuum adsorption glass platform
5) Taiwan Air TAC Original precision cylinder
6) Omron Dual Temperature Module
7) Samkoon dual-core touch screen
8)SMC precision components
9)K type Original US OMEGA wire
Air TAC Original precision cylinder
OmronTemperature Control
Touch Screen
Panasonic PLC
SUS440C titanium alloy press head
High definition Cameras
FAQ
1. Are you a manufacturer of the tb/cof/acf bonding machine?

Yes, we are a manufacturer

2. what is the warranty period?

we offer one year warranty for all our acf bonding machines and other lcd repair machines.

3. will you provide free spare parts?

YES, we will provide free bonding machine spare parts.

4. Do you provide training?

YES, we can provide free training on how to use our tab/cof/acf bonding machine. welcome to visit our factory.

5. what is the difference  among your bonding machines?

We have single head bonding machine and double head bonding machine in different machine sizes. It can save your time of changing bonding
head if you buy double head bonding machines for repairing computer. All are hot press pulse heat bonding machine.

6. Is ST-100SW suitable for computer/laptop?
YES, but you need extra cof
bonding machine head.

7. Can your cof bonding machine repair 4K 8K lcd screen panel?

YES, this model can fix computers but you need extra cof bonding heads.

8. what is the size of cof bonding machine head equipped?

It is defaultly equipped with 50*1.4mm lcd bonding machine head. You can buy extra bonding heads in dfferent sizes from us.

9. Are accessories provided?

YES, accessories are provided for operating the machine. You only need to buy COF. we also sell COF.

10. When can you ship the machine after payment?

We have lcd cof bonding machine in stock. Goods will be shipped by sea in 3 days after payment.
