Features:
*Pulse Heating System
*4pcs CCD
*Panasonic PLC Control system
*Human - Machine interface
*Imported electrical configuration
*Up to 65inch TV LCD Repair
Specifications:
| Model: | OL-DFF006 |
| Product Name: | 65 Inch TV LCD Repair Single station Pulse Heating COF/FOG Bonding machine |
| Suitable For: | Suitable for FPC/COF Contraposition bonded to LCD which attached ACF,Used for COF repair |
| Size Range: | 13-65inch |
| Bonding Precision: | X±0.01MM ,Y±0.01MM |
| Machine Capacity: | 12S/Pcs,2500pcs/day |
| Indenter Qty: | 1PCS |
| Power Supply: | 220V±10%,50HZ,1500W |
| Air Supply: | 0.4~0.7MPa,dry air |
| FPC size: | Max:L80*W60MM Min:L10*W15MM |
| Platform Precision: | ±0.01MM |
| Pressure Head Size: | 80*1MM (customizable) |
| Temp Range: | RT~400℃ |
| Time Range: | 1~99.9sec |
| Product Size: | W1200*850*H1300MM |
| N.W: | About 200kg |

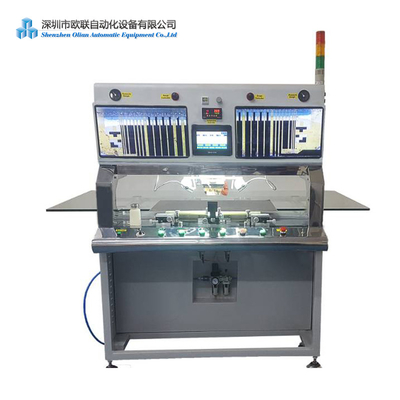

Pictures:
Glossary:
What is ACF?
1, The common explanation:
ACF is anisotropic conductive film, a kind of material in the bonding process to be used in capacitive screen, resistive screen, touch screen, LCD screen, tablet PC, mobile phone screens, etc.Means a resin film containing a heat-conductive particles of a thermoplastic or cured. Mainly for LCD panel signal transmission link with the driver IC, the need to bonding different interface to choose suitable conductive particles and density, generally used for fine pitch of the conductive particles having a diameter of about 3 ~ 5 um.
2, Professional explanation:
The English abbreviation of ACF is Anisotropic Conductive Film, ACF is the electrical conduction in the Z-axis direction and the XY insulation resistance characteristic plane has obvious differences. When the difference between Z-axis and the XY plane on-resistance value of the insulation resistance exceeds a predetermined ratio, also can be called well anisotropic conductivity.
What is the COF
1, The popular explanation:
COF package is to put the IC dependend on FPC: COF package for flip chip film.
2, Professional explanation:
COF is the abbreviation of Chip - on - flex, is to put the IC dependend on FPC,a new technology developed of liquid crystal display module, by it in terms of product size, weight, high integration, have very big breakthrough.Due to the flexible circuit board PCB thickness thin, lighter than the solid, so COF package module is small volume, light weight, and the design and production speed is quickly.
What is the pulse hot-pressing machine?
1, The popular explanation:
Pulsed hot pressing machine is by hot pressing head loading pulse voltage, hot head heating , will be connected to the object, when the temperature rises to solder melting point after (i.e., after the rise to the predetermined temperature), will be connected to the tin melting between the objects and put it together.Applied to mobile phone manufacturer, touch screen manufacturers, such as computer, printer manufacturers, production technology applied in the following products: USB wire welding, soft wire FFC flexible PCB FPC or rigid circuit board PCB welding, TCP and circuit board PCB or PCB FPC welding between soft,welding?flexible circuit board FPC between circuit board PCB , etc.
2, Professional explanation:
Pulse hot press is the English translation of Pulse hot press, by hot pressing head loading Pulse voltage, ?hot head heating , will be connected to this object to heat up, when the temperature rises to soldering tin melting point (i.e., to simulate the temperature after), will be connected to the tin melting between the objects and connect it together. The general Pulse hot-press temperature closed loop control.
